移动响应式布局（一）

一、移动端基础

0x1 Viewport

1、介绍
移动设备上的viewport是指设备的屏幕上能用来显示网
页的区域，一般来讲，移动设备上的viewport都要大于浏览
器的可视区域。

2、用法

<meta name="viewport" content="width=device-width,
initial-scale=1.0, maximum-scale=1.0, user-scalable=0">
//属性
width : 设置layout viewport 宽度，值为一个正整数，或字符串"width-device"
height：设置layout viewport 高度，这个属性很少使用
initial-scale：设置页面初始缩放值，值为一个数字，可以是小数
minimum-scale : 设置页面最小缩放值，值为一个数字，可以是小数
maximum-scale : 设置页面最大缩放值，值为一个数字，可以是小数
user-scalable : 是否允许用户进行缩放，值为"no"或"yes"

initial-scale=1.0, maximum-scale=1.0, user-scalable=0">

//属性

width : 设置layout viewport 宽度，值为一个正整数，或字符串"width-device"

height：设置layout viewport 高度，这个属性很少使用

initial-scale：设置页面初始缩放值，值为一个数字，可以是小数

minimum-scale : 设置页面最小缩放值，值为一个数字，可以是小数

maximum-scale : 设置页面最大缩放值，值为一个数字，可以是小数

user-scalable : 是否允许用户进行缩放，值为"no"或"yes"

0x2 CSS度量单位

|单位|说明|兼容性|
|---|---|---|
|em|相对长度单位，相对于当前对象内文本的字体尺寸，根据父元素的大小变化而变化|良好|
|rem|相对长度单位，相对于跟元素（即 html 元素）font-size 的倍数，不会被它的父元素影响|IE9+、火狐 3.6+、 safari5.0+|
|vw|相对于视口的宽度，视口被均分为 100 单位的vw|高版本浏览器均支持|
|vh|相对于视口的宽度，视口被均分为 100 单位的vh|高版本浏览器均支持|
详情移步这里点击查看

二、响应式布局

0x1 响应式布局（@media）

优点：

针对不同的屏幕尺寸设置不同的样式
响应式布局是解决移动端设备屏幕尺寸不同的问题
面对不同分辨率设备灵活性强
能够快捷解决多设备显示适应问题

缺点：
- 兼容各种设备工作量大，效率低下
- 代码累赘，会出现隐藏无用的元素，加载时间加长
- 是一种折衷性质的设计解决方案，多方面因素影响而达不到最佳效果

0x2 媒体查询

写法：

@media mediatype and|not|only  (media feature) {
    //and且 not不是 only仅仅
    CSS-Code;
}

//也可以针对不同的媒体使用不同 stylesheets :
<link rel="stylesheet" media="mediatype and|not|only (media feature)"
href="mystylesheet.css">

@media mediatype and|not|only (media feature) {

//and且 not不是 only仅仅

CSS-Code;

}

//也可以针对不同的媒体使用不同 stylesheets :

href="mystylesheet.css">

理解：媒体查询是响应式布局的方法之一，扩展了 Media 属性。
作用：使网页适配于各种设备（为不同设备提供不同样式）。
核心：当屏幕改变到一定的大小，页面中的模块样式设置发生改变。

media feature:
- max-width：定义输出设备中的页面最大可见区域宽度。
- min-width：定义输出设备中的页面最小可见区域宽度。

0x3 实战@media案例

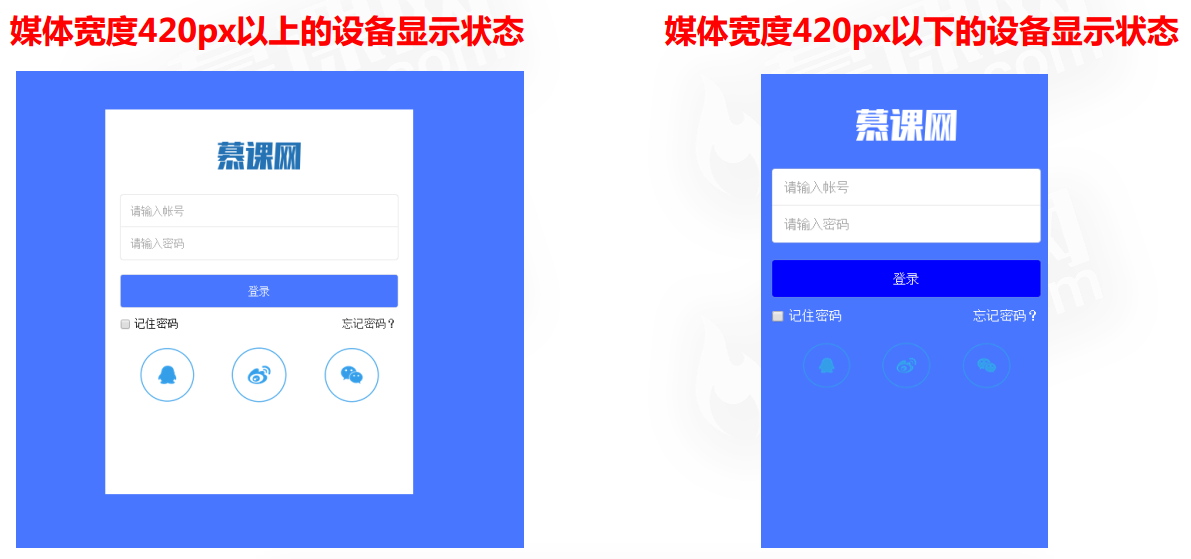

效果图：

Demo

//CSS样式
body,html{
    background: #4876FF;
}
#wrapper{
    width: 400px;
    height: 500px;
    position: absolute;
    top: 50%;
    left: 50%;
    margin-left: -200px;
    margin-top: -250px;
    background: white;
    overflow: hidden;
}
header{
    width: 100%;
    height: 91px;
    display: -webkit-box;
    -webkit-box-pack: center;
}
header img{
    position: relative;
    top: -30px;
}
.count{
    width: 100%;
    margin-top: 20px;

}
.count form{
    width: 90%;
    display: -webkit-box;
    -webkit-box-orient: vertical;
    margin: 0 auto;
}
.count form input{
    display: block;
    padding: 13px;
    border: 0;
    box-shadow: 0 0 1px #999999;
}
.count form input:first-child{
    border-radius: 3px 3px 0 0;
}
.count form input:nth-child(2){
    border-radius: 0 0 3px 3px;
}
.count form input:nth-child(3){
    margin-top: 20px;
    background: #4876FF;
    color: white;
    border-radius: 3px;
}
.count div{
    width: 90%;
    margin: 10px auto;
    display: -webkit-box;
    -webkit-box-pack: justify;
}
.count div span{
    display: block;
    color: black;
}
footer{
    width: 100%;
}
footer ul{
    width: 100%;
    display: -webkit-box;
    -webkit-box-pack: center;
}
footer ul li{
    display: -webkit-box;
}
footer ul li a{
    display: block;
}
footer ul li a img{
    display: block;
    width: 60%;
    margin: 10px auto;
}

@media screen and (max-width:420px ){
    #wrapper{
        width: 100%;
        height: 100%;
        position: absolute;
        top: 0;
        left: 0;
        margin: 0;
        background: #4876FF;
        overflow: hidden;
    }
    header{
    width: 100%;
    height: 91px;
    display: -webkit-box;
    -webkit-box-pack: center;
    overflow: hidden;
    }
    header img{
        position: relative;
        top: 31px;

    }
    .count form input:nth-child(3){
        margin-top: 20px;
        background:blue;
        color: white;
        border-radius: 3px;
        }
    .count div span{
        display: block;
        color: white;
    }
    .count div span a{
        color: white;
    }
    footer{
        width: 90%;
        margin:auto;
    }
    footer ul{
        width: 100%;
        display: -webkit-box;
        -webkit-box-pack: center;
    }
    footer ul li{
        display: -webkit-box;
        width:30%;
    }
}

//HTML
<body>
        <div id="wrapper">
            <header><img src="img/1a.png" /></header>
            <article class="count">
                <form>
                    <input type="text" placeholder="请输入帐号" />
                    <input type="password" placeholder="请输入密码" />
                    <input type="submit"  value="登录"/>
                </form>
                <div>
                    <span>
                        <label>
                            <input type="checkbox" /> 记住密码
                        </label>
                    </span>
                    <span>
                        <a href="#">忘记密码？</a>
                    </span>
                </div>
            </article>
            <footer>
                <ul>
                    <li><a href="#"><img src="img/2.png"/></a></li>
                    <li><a href="#"><img src="img/3.png"/></a></li>
                    <li><a href="#"><img src="img/4.png"/></a></li>
                </ul>
            </footer>
        </div>
    </body>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

//CSS样式

body,html{

background: #4876FF;

}

#wrapper{

width: 400px;

height: 500px;

position: absolute;

top: 50%;

left: 50%;

margin-left: -200px;

margin-top: -250px;

background: white;

overflow: hidden;

}

header{

width: 100%;

height: 91px;

display: -webkit-box;

-webkit-box-pack: center;

}

header img{

position: relative;

top: -30px;

}

.count{

width: 100%;

margin-top: 20px;

}

.count form{

width: 90%;

display: -webkit-box;

-webkit-box-orient: vertical;

margin: 0 auto;

}

.count form input{

display: block;

padding: 13px;

border: 0;

box-shadow: 0 0 1px #999999;

}

.count form input:first-child{

border-radius: 3px 3px 0 0;

}

.count form input:nth-child(2){

border-radius: 0 0 3px 3px;

}

.count form input:nth-child(3){

margin-top: 20px;

background: #4876FF;

color: white;

border-radius: 3px;

}

.count div{

width: 90%;

margin: 10px auto;

display: -webkit-box;

-webkit-box-pack: justify;

}

.count div span{

display: block;

color: black;

}

footer{

width: 100%;

}

footer ul{

width: 100%;

display: -webkit-box;

-webkit-box-pack: center;

}

footer ul li{

display: -webkit-box;

}

footer ul li a{

display: block;

}

footer ul li a img{

display: block;

width: 60%;

margin: 10px auto;

}

@media screen and (max-width:420px ){

#wrapper{

width: 100%;

height: 100%;

position: absolute;

top: 0;

left: 0;

margin: 0;

background: #4876FF;

overflow: hidden;

}

header{

width: 100%;

height: 91px;

display: -webkit-box;

-webkit-box-pack: center;

overflow: hidden;

}

header img{

position: relative;

top: 31px;

}

.count form input:nth-child(3){

margin-top: 20px;

background:blue;

color: white;

border-radius: 3px;

}

.count div span{

display: block;

color: white;

}

.count div span a{

color: white;

}

footer{

width: 90%;

margin:auto;

}

footer ul{

width: 100%;

display: -webkit-box;

-webkit-box-pack: center;

}

footer ul li{

display: -webkit-box;

width:30%;

}

//HTML

<body>

<form>

</form>

<div>

<span>

<label>

<input type="checkbox" /> 记住密码

</label>

</span>

<span>

</span>

</div>

</article>

<ul>

</ul>

</footer>

</div>

</body>

下面附上比较全面的reset.css

/**
 * Eric Meyer's Reset CSS v2.0 (http://meyerweb.com/eric/tools/css/reset/)
 * http://cssreset.com
 */
html, body, div, span, applet, object, iframe,
h1, h2, h3, h4, h5, h6, p, blockquote, pre,
a, abbr, acronym, address, big, cite, code,
del, dfn, em, img, ins, kbd, q, s, samp,
small, strike, strong, sub, sup, tt, var,
b, u, i, center,
dl, dt, dd, ol, ul, li,
fieldset, form, label, legend,
table, caption, tbody, tfoot, thead, tr, th, td,
article, aside, canvas, details, embed,
figure, figcaption, footer, header, hgroup,
menu, nav, output, ruby, section, summary,
time, mark, audio, video {
    margin: 0;
    padding: 0;
    border: 0;
    font-size: 100%;
    font: inherit;
    vertical-align: baseline;
}
/* HTML5 display-role reset for older browsers */
article, aside, details, figcaption, figure,
footer, header, hgroup, menu, nav, section {
    display: block;
}
html {
    height:100% !important;
    min-height:100% !important;
}
body {
    margin:0;
    padding:0;
    height:100%;
    min-height:100%;
    width:100%;
    background: #FFFFFF;
    font: 14px/22px "ralewayregular", Helvetica Neue, Helvetica, Arial, sans-serif;
    color: #888888;
    -webkit-font-smoothing: antialiased; /* Fix for webkit rendering */
    -webkit-text-size-adjust: 100%;
    letter-spacing:0.5px;
}

ol, ul {
    list-style: none;
}
nav ul {
    list-style:none;
}
li{
    list-style:none;
}
blockquote, q {
    quotes: none;
}
blockquote:before, blockquote:after,
q:before, q:after {
    content: '';
    content: none;
}
a {
    margin:0;
    padding:0;
    font-size:100%;
    vertical-align:baseline;
    background:transparent;
    text-decoration:none;
    outline:none;
    color: #333;
}
a:hover{
    cursor:pointer;
}

/* change colours to suit your needs */
mark {
    background-color:#ff9;
    color:#000;
    font-style:italic;
    font-weight:bold;
}

del {
    text-decoration: line-through;
}

abbr[title], dfn[title] {
    border-bottom:1px dotted;
    cursor:help;
}

table {
    border-collapse:collapse;
    border-spacing:0;
}

/* change border colour to suit your needs */
hr {
    display:block;
    height:1px;
    border:0;
    border-top:1px solid #cccccc;
    margin:1em 0;
    padding:0;
}


button,
input,
select,
textarea {
  margin: 0;
  font-size: 100%;
  vertical-align: middle;
}

button,
input {
  *overflow: visible;
  line-height: normal;
}

button::-moz-focus-inner,
input::-moz-focus-inner {
  padding: 0;
  border: 0;
}

button,
html input[type="button"],
input[type="reset"],
input[type="submit"] {
  cursor: pointer;
  -webkit-appearance: button;
}

label,
select,
button,
input[type="button"],
input[type="reset"],
input[type="submit"],
input[type="radio"],
input[type="checkbox"] {
  cursor: pointer;
}

input[type="search"] {
  -webkit-box-sizing: content-box;
     -moz-box-sizing: content-box;
          box-sizing: content-box;
  -webkit-appearance: textfield;
}

input[type="search"]::-webkit-search-decoration,
input[type="search"]::-webkit-search-cancel-button {
  -webkit-appearance: none;
}

textarea {
  overflow: auto;
  vertical-align: top;
}
.outline[type=text]:focus,.outline[type=submit]:focus,
.outline[type=radio]:focus,.outline[type=checkbox]:focus,.outline[type=password]:focus,button:focus{
    outline:none;
}

input[type=text]:focus,input[type=submit]:focus,
input[type=radio]:focus,input[type=checkbox]:focus,input[type=password]:focus{
    outline:none;
}
button[type=button]:focus,button[type=submit]:focus,
input[type=reset]:focus{
    outline:none;
}
.ch{display: none;}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

/**

* Eric Meyer's Reset CSS v2.0 (http://meyerweb.com/eric/tools/css/reset/)

* http://cssreset.com

html, body, div, span, applet, object, iframe,

h1, h2, h3, h4, h5, h6, p, blockquote, pre,

a, abbr, acronym, address, big, cite, code,

del, dfn, em, img, ins, kbd, q, s, samp,

small, strike, strong, sub, sup, tt, var,

b, u, i, center,

dl, dt, dd, ol, ul, li,

fieldset, form, label, legend,

table, caption, tbody, tfoot, thead, tr, th, td,

article, aside, canvas, details, embed,

figure, figcaption, footer, header, hgroup,

menu, nav, output, ruby, section, summary,

time, mark, audio, video {

margin: 0;

padding: 0;

border: 0;

font-size: 100%;

font: inherit;

vertical-align: baseline;

}

/* HTML5 display-role reset for older browsers */

article, aside, details, figcaption, figure,

footer, header, hgroup, menu, nav, section {

display: block;

}

html {

height:100% !important;

min-height:100% !important;

}

body {

margin:0;

padding:0;

height:100%;

min-height:100%;

width:100%;

background: #FFFFFF;

font: 14px/22px "ralewayregular", Helvetica Neue, Helvetica, Arial, sans-serif;

color: #888888;

-webkit-font-smoothing: antialiased; /* Fix for webkit rendering */

-webkit-text-size-adjust: 100%;

letter-spacing:0.5px;

}

ol, ul {

list-style: none;

}

nav ul {

list-style:none;

}

li{

list-style:none;

}

blockquote, q {

quotes: none;

}

blockquote:before, blockquote:after,

q:before, q:after {

content: '';

content: none;

}

a {

margin:0;

padding:0;

font-size:100%;

vertical-align:baseline;

background:transparent;

text-decoration:none;

outline:none;

color: #333;

}

a:hover{

cursor:pointer;

}

/* change colours to suit your needs */

mark {

background-color:#ff9;

color:#000;

font-style:italic;

font-weight:bold;

}

del {

text-decoration: line-through;

}

abbr[title], dfn[title] {

border-bottom:1px dotted;

cursor:help;

}

table {

border-collapse:collapse;

border-spacing:0;

}

/* change border colour to suit your needs */

hr {

display:block;

height:1px;

border:0;

border-top:1px solid #cccccc;

margin:1em 0;

padding:0;

}

button,

input,

select,

textarea {

margin: 0;

font-size: 100%;

vertical-align: middle;

}

button,

input {

*overflow: visible;

line-height: normal;

}

button::-moz-focus-inner,

input::-moz-focus-inner {

padding: 0;

border: 0;

}

button,

html input[type="button"],

input[type="reset"],

input[type="submit"] {

cursor: pointer;

-webkit-appearance: button;

}

label,

select,

button,

input[type="button"],

input[type="reset"],

input[type="submit"],

input[type="radio"],

input[type="checkbox"] {

cursor: pointer;

}

input[type="search"] {

-webkit-box-sizing: content-box;

-moz-box-sizing: content-box;

box-sizing: content-box;

-webkit-appearance: textfield;

}

input[type="search"]::-webkit-search-decoration,

input[type="search"]::-webkit-search-cancel-button {

-webkit-appearance: none;

}

textarea {

overflow: auto;

vertical-align: top;

}

.outline[type=text]:focus,.outline[type=submit]:focus,

.outline[type=radio]:focus,.outline[type=checkbox]:focus,.outline[type=password]:focus,button:focus{

outline:none;

}

input[type=text]:focus,input[type=submit]:focus,

input[type=radio]:focus,input[type=checkbox]:focus,input[type=password]:focus{

outline:none;

}

button[type=button]:focus,button[type=submit]:focus,

input[type=reset]:focus{

outline:none;

}

.ch{display: none;}
